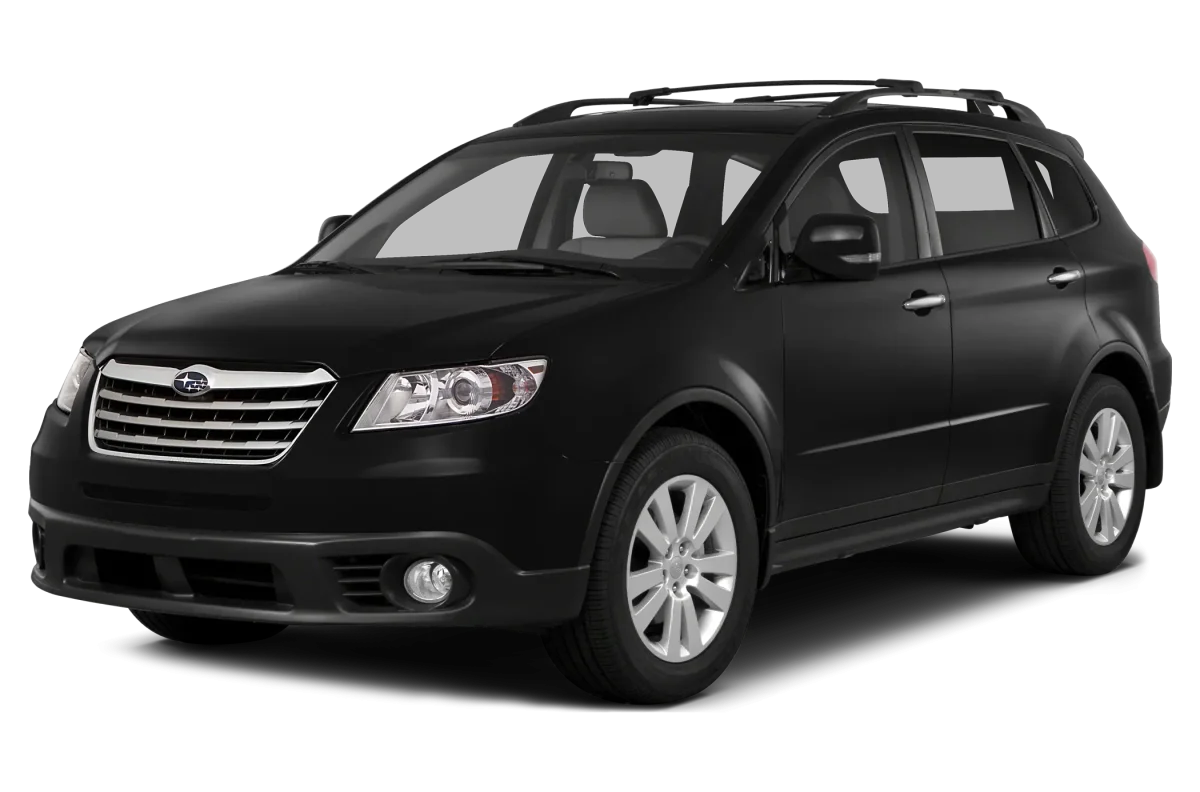

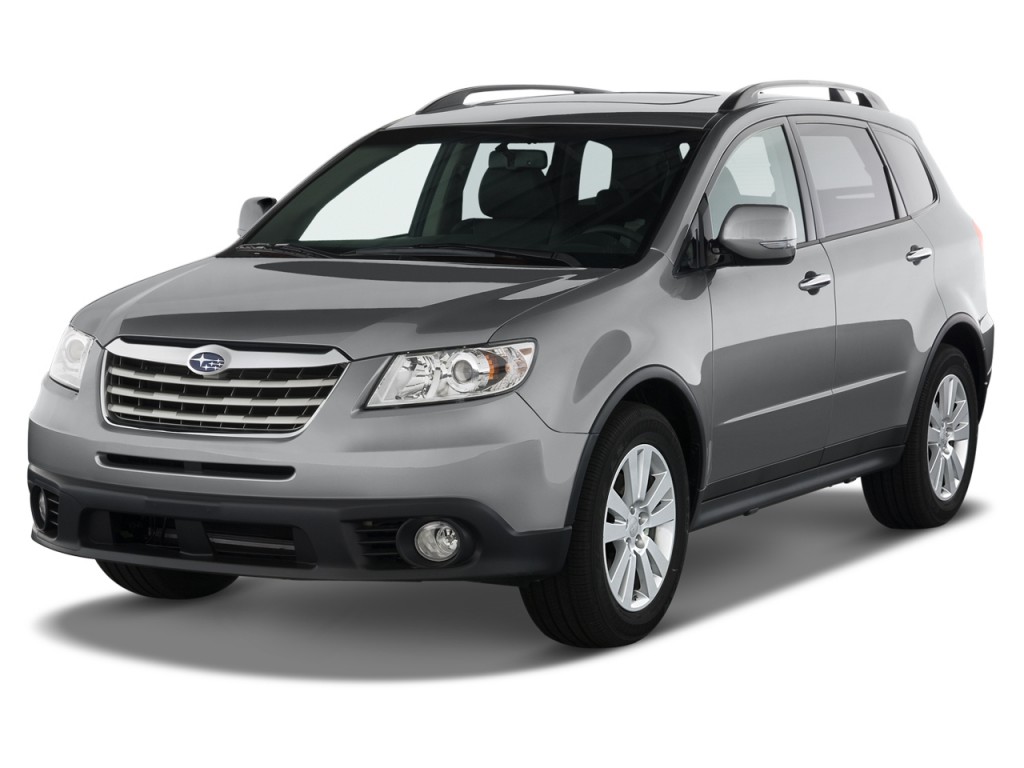

Transmission Issues, Recalls, and Complaints on the Subaru Tribeca gen 1 2006–2014
Overview
This platform is simple. Almost boring, on paper.
The first-gen Subaru Tribeca (2006–2014) runs one transmission setup the entire time—Subaru’s 5EAT paired with their VTD AWD system. No CVTs. No dual clutches. No weird experiments. Just one automatic, reused and recalibrated.
Sounds good, right? Fewer variables. Easier life.
In my experience, that’s only half true. I’ve seen these go well past 200,000 miles (320,000 km) without opening the case. I’ve also seen them start acting up way earlier—same hardware, totally different outcome. The difference is always maintenance and how the car was handled.
OEM documentation doesn’t show a design defect. No “this thing always explodes” situation. What you do get are service bulletins—TSB 16-80-11R, Service Info 16-91-14—pointing to valve body issues and diagnostic mistakes. That tells you something. The hardware isn’t the weak link. The control side is.
And once that goes sideways, the whole drivetrain starts acting weird.
Which Transmissions It Uses
One family. That’s it. No alternatives. No mid-cycle swaps.
| Transmission Code | Gears | Drive Layout | Engine Pairing | Years | Notes |
|---|---|---|---|---|---|
| TG5C9CMAAA / TG5C9CPBAA | 5 | AWD (VTD) | 3.0L EZ30 | 2006–2007 | Early version of the 5EAT with VTD center diff |
| TG5D9CJDAA | 5 | AWD (VTD) | 3.6L EZ36 | 2008–2014 | Updated calibration for the bigger engine |
Everything is tied together:
- Front diff built into the tranny
- Planetary center diff with an electronically controlled clutch pack
- Rear diff fed by a prop shaft
It’s not a fragile design. It’s just very dependent on fluid condition and proper service. Mess that up, things start stacking.
Main Failure Patterns
AT Temp Light Flashing — Valve Body Mess
This is the one you’ll actually see in the wild.
TSB 16-80-11R covers it. AT oil temp light starts flashing, codes stack up—P0751, P0756, P0761, P0766, P0771, P1840 through P1844. Looks scary. Owners think the tranny is done.
Usually isn’t.
What’s happening is contamination in the valve body. Fluid breaks down, debris builds up, solenoids don’t behave. Hydraulic control goes sloppy. Then the computer freaks out.
In real service bays, I’ve seen this come in as:
- Random harsh shifts
- Weird hesitation
- Flashing light that scares the owner to death
No mileage is officially tied to it, but let’s be honest—this shows up way more on cars that never had fluid service. That “lifetime fluid” idea? Yeah. That’s a joke.
Diagnostic Confusion — Not a Failure, Still Costs Money
Service Information 16-91-14 exists because Subaru had to correct their own diagnostic instructions.
That’s not great.
Wrong connector references. Wrong testing methods. Techs chasing ghosts.
I’ve seen valve bodies replaced for no reason. Wiring harnesses torn apart. Hours wasted. Customer pays anyway.
So the tranny gets blamed when the real issue was bad instructions. That skews the reputation of this unit more than it should.
Torque Converter Damage — Purely Human Error
This one makes me shake my head every time.
Subaru literally warns about it—use the proper tool when removing or installing the engine or transmission. If you don’t, you can damage the torque converter snout.
And people still skip it.
Result?
- Vibration right after repair
- Pump damage
- Pressure issues that look like internal failure
Customer thinks the tranny is junk. Nope. Someone just got lazy during install.
Rear Differential Temp Warning
There’s documentation referencing rear diff temp light behavior. Not much detail. No clear root cause from Subaru.
In the shop, when I see this, it’s usually tied to fluid condition or load. Not a blown diff. More like the system telling you something isn’t happy.
Call it a Field Observation.
Typical Repair Costs
| Repair Type | Typical Cost (USD) | Notes |
|---|---|---|
| ATF drain and refill | $180–$350 | Service Bay Benchmark |
| Full fluid exchange | $300–$600 | Service Bay Benchmark |
| Valve body replacement | $900–$1,800 | Service Bay Benchmark |
| Torque converter replacement | $1,200–$2,200 | Service Bay Benchmark |
| Used transmission | $2,000–$3,500 | Service Bay Benchmark |
| Rebuilt transmission | $3,500–$5,500 | Service Bay Benchmark |
| Rear differential service | $150–$300 | Service Bay Benchmark |
Here’s the thing. Most people jump straight to “I need a new tranny.”
In reality, a lot of these cars just needed fluid and maybe a valve body cleanup before things got out of hand.
Best and Worst Years
| Years | Engine | Transmission | Reliability Assessment | Notes |
|---|---|---|---|---|
| 2006–2007 | 3.0L EZ30 | TG5C9CMAAA / TG5C9CPBAA | Projected Rating: Moderate | Early setup, less refined calibration |
| 2008–2010 | 3.6L EZ36 | TG5D9CJDAA | Projected Rating: Moderate | Better pairing with engine torque |
| 2011–2014 | 3.6L EZ36 | TG5D9CJDAA | Projected Rating: Moderate | No major hardware changes, just refinement |
There’s no “avoid at all costs” year here. It’s all about condition.
Warning Signs & Early Detection
| Symptom | Likely Cause | Urgency |
|---|---|---|
| Flashing AT temp light | Valve body contamination | High |
| Stored transmission codes | Solenoid or hydraulic control issue | High |
| Harsh shifting | Fluid breakdown or control issue | Medium |
| Vibration after repair | Torque converter damage | High |
| Rear diff temp light | Field Observation | Medium |
Scan tools matter here. Cheap ones miss a lot. I’ve seen cars come in “no codes” and then you hook up a proper scanner—boom, transmission faults everywhere.
When to Walk Away
Some cars aren’t worth the headache.
- AT temp light flashing during a test drive — walk
- Multiple transmission codes — walk
- No service records — be very careful
- Recent tranny removal with zero documentation — big red flag
One issue? Maybe manageable. Stack a few together and you’re buying a project whether you like it or not.
Ownership Reality
| Category | OEM Guidance | Real-World Outcome | Consequence |
|---|---|---|---|
| ATF Maintenance | No abnormal service interval emphasis | Fluid degrades and affects valve body | Shift issues and warning lights |
| Transmission Life Expectancy | Normal service life assumed | Depends heavily on maintenance | Huge variation in reliability |
| Diagnostics | Updated procedures issued | Older methods lead to misdiagnosis | Unnecessary repairs |
| Service Procedures | Proper tools required | Often skipped in practice | Torque converter damage |
| AWD Maintenance | Standard intervals | Commonly ignored | Heat warnings and wear |
I’ve seen two identical Tribecas. Same year. Same drivetrain. One goes forever. The other eats money.
Difference? Maintenance. Always.
Lawsuits, Complaints & Regulatory History
No class-action lawsuits tied specifically to this transmission.
What you do have:
- TSB 16-80-11R — valve body contamination and AT temp light
- Service Information 16-91-14 — diagnostic corrections
NHTSA complaints mention shifting issues and warning lights, but nothing pointing to a widespread safety defect or recall-level problem.
That pattern matters. When a manufacturer fixes diagnostics instead of recalling parts, it usually means the hardware isn’t failing en masse—the system is just sensitive.
Bottom Line
This isn’t a weak transmission.
But it’s not forgiving either.
The 5EAT (TG5C9CMAAA, TG5C9CPBAA, TG5D9CJDAA) can last a long time. I’ve seen it. But neglect it, skip fluid service, let debris build up—then yeah, it turns into a problem.
Most failures aren’t dramatic. No gears flying apart. No catastrophic grenading. It’s slow degradation. Messy behavior. Then expensive decisions.
Take care of it, it behaves. Ignore it, it turns into a ticking time bomb.
