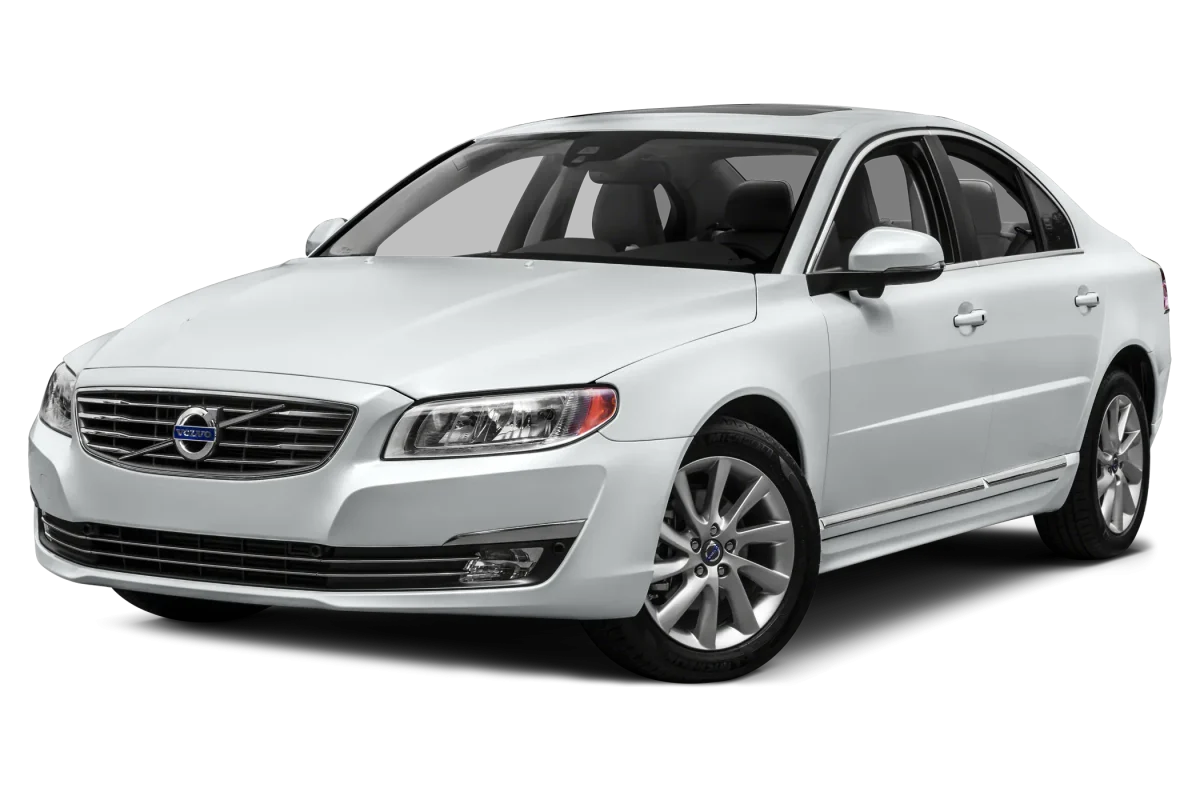

Volvo S80 gen 2 2007–2016 Transmission: Common Issues and Expert Verdict

Overview

The second-generation Volvo S80 (2007–2016) is one of those cars that looks calm, reserved, almost boring. Underneath? A very modern drivetrain for its time. Aisin 6-speed automatic. Haldex AWD on certain trims. Lots of software running the show.

No manual in the US. No dual clutch. No CVT experiments. Just the Aisin TF-80 series doing all the work from 2007 through 2016.

I’ve worked on these since they were new. I’ve seen them with 40,000 miles and I’ve seen them limping in at 220,000 miles. The pattern is consistent: this transmission doesn’t usually grenade out of nowhere. It degrades. Slowly. And if you ignore it, it punishes you.

Before we go any further, you need to know about one regulatory issue.

NHTSA Recall 12V317000 (Volvo Campaign 255)

This recall covered certain 2011–2012 and some early 2013 S80 models equipped with the TF-80 6-speed. The problem wasn’t hard parts. It was software. The Transmission Control Module had an error in torque converter lock-up logic during deceleration. On a 5th to 4th downshift while coasting, engine RPM could drop too low. In some cases, the engine stalled.

Failure mechanism: TCM calibration flaw affecting lock-up release timing.

Fix: Software update.

Risk: Stall during decel. Not ideal in traffic.

In my experience, once updated, the issue is gone. Cars that never received the update? They feel strange on coast-down. Sometimes rough. Sometimes unpredictable.

Before buying one, check the VIN. Always.

Which Transmissions It Uses

There are only two variants in the US market. Both from Aisin. Both 6-speed. Same family. Slightly different cases depending on drivetrain.

Aisin TF-80SC

• Official model code: TF-80SC
• Gear count: 6-speed
• Drive layout: FWD
• Engine pairings: 3.2L I6 (B6324S), later 2.5L T5, 2.0L Drive-E turbo
• Production years: 2007–2016

This is the bread-and-butter setup. FWD cars. Simple. Less rotational mass. Fewer driveline parts to worry about.

Aisin TF-80SD

• Official model code: TF-80SD
• Gear count: 6-speed
• Drive layout: AWD
• Engine pairings: 3.0L T6 AWD, select 3.2L AWD configurations
• Production years: 2007–2016

The SD version works with the AWD system. Slight internal differences. Same general behavior.

No other transmissions were offered in the US. That’s it. One family. Six gears. A lot of software control.

AWD models use Haldex coupling — Gen 4 early, Gen 5 later — controlled by the DEM module. That piece matters more than people think.

Main Failure Patterns

5–4 Downshift Harshness

This is the classic complaint. Customer says: “It feels like it bumps when slowing down.”

They’re describing the 5–4 coast-down shift.

Mechanically, the TF-80 is strong. But it is extremely sensitive to fluid condition and adaptation values. When fluid gets tired — and yes, “lifetime fluid” is a joke — clutch fill times change. The TCM tries to compensate. It drifts. Then it over-corrects. Then you get that awkward bump.

Most of the time, this is not internal clutch damage. It’s software plus fluid condition. I’ve reset adaptations and done a full exchange (about 12–14 quarts / 11–13 liters total flush volume) and watched cars transform.

Leave it alone for 40,000 more miles? Now you’re wearing the valve body.

Torque Converter Clutch Shudder

This one creeps in around 35–50 mph (56–80 km/h). Light throttle. Feels like driving over subtle rumble strips.

That’s the lock-up clutch slipping.

Fluid shear breakdown is usually the starting point. Once the friction material glazes, it doesn’t fully grab. The TCM commands lock-up, the clutch partially slips, RPM oscillates. Annoying. Embarrassing.

Service Bay Benchmark: Units that pass 100,000 miles (160,000 km) without fluid exchange are much more likely to develop this.

Sometimes fresh fluid cures it. Sometimes it’s too late. If shudder stays after service, you’re looking at torque converter replacement. And that means pulling the tranny.

Valve Body Wear

Not common early. Shows up on higher mileage cars. 130,000–160,000 miles (209,000–257,000 km) and beyond.

Symptoms feel messy:

• Delayed Drive engagement
• 2–3 flare
• Inconsistent shifts when hot

Pressure regulator bore wear. Solenoids drifting out of spec. Tiny hydraulic leaks inside the casting that nobody sees.

I’ve seen dozens of these fixed with valve body replacement alone. You don’t automatically need a full rebuild. When shops jump straight to “needs a transmission,” that’s laziness or inexperience.

Haldex Gen 5 Pump Clogging

Now we shift gears. AWD cars.

Customer sees “AWD Disabled.” Panic. Assumes rear differential exploded.

Usually it didn’t.

Haldex Gen 5 systems (mostly 2013–2016) use an electric pump with a small strainer. If AWD fluid isn’t serviced, debris builds up. The strainer clogs. Pump flow drops. DEM sets faults. Rear wheels stop engaging.

I’ve opened pumps and found sludge thick enough to look like metallic yogurt. No joke.

Field Observation: Many units between 70,000–100,000 miles (113,000–160,000 km) with no AWD service develop pump restriction.

Clean the strainer early and you’re fine. Ignore it, and you cook the pump.

PTU / Angle Gear Wear

Not epidemic. But real.

Mostly T6 AWD cars with torque and weight. Over 120,000 miles (193,000 km). Whine under load. Sometimes seal seepage. Sometimes fine metal shavings in fluid.

They don’t usually explode. They wear. Gradually. And if fluid leaks go unnoticed, the wear accelerates.

Typical Repair Costs

Prices move around depending on region. These are Industry Estimates based on real shop invoices and dealer quotes.

Repair Type	Parts (USD)	Labor (USD)	Total (USD)	Context
TCM Software Update	$0–$200	$150–$300	$150–$500	Recall or drivability correction
Full Transmission Fluid Exchange	$200–$350	$250–$400	$450–$750	12–14 quarts total exchange
Torque Converter Replacement	$800–$1,400	$1,200–$2,000	$2,000–$3,400	Persistent shudder
Valve Body Replacement	$900–$1,400	$800–$1,400	$1,700–$2,800	Pressure wear
Haldex Pump + Service	$400–$800	$400–$700	$800–$1,500	AWD Disabled message
Complete Transmission Replacement	$3,500–$6,000	$1,800–$3,000	$5,300–$9,000	Severe internal damage

Full transmission replacement before 150,000 miles (241,000 km) is uncommon unless the car was abused or never serviced.

Best and Worst Years

There isn’t a single disaster year. This isn’t one of those ticking time bomb generations.

Model Year	Configuration	Recall Exposure	Dominant Concern	Risk Level
2007–2009	3.2 FWD	No	Fluid neglect sensitivity	Low
2011–2012	3.2 / T6	12V317000	TCM calibration	Medium
2013–2014	T6 AWD	Software bulletins	Haldex pump clogging	Medium
2015–2016	Drive-E	No	Normal wear	Low

Maintenance history matters more than badge year.

Warning Signs & Early Detection

• Harsh 5–4 downshift
• RPM flare between gears
• Shudder at cruise
• Delayed Drive engagement
• “AWD Disabled” message
• Fluid seepage at axle seals

If I’m inspecting one, I scan TCM adaptation values. I scan DEM. I command the AWD pump. I check fluid color and smell. Burnt fluid smells like regret.

Catching issues early keeps you in the hundreds, not the thousands.

When to Walk Away

• Recall 12V317000 never completed
• Persistent torque converter shudder after fluid service
• Visible metal shavings in pan
• AWD disabled returns immediately after pump replacement
• Repeated delayed engagement into Drive

Those are red flags. Not minor quirks. If you see shavings and someone says “It just needs a reset,” that’s a band-aid fix.

Ownership Reality

Category	OEM Guidance	Real-World Outcome	Financial Impact
Transmission Fluid	No aggressive early interval	Degrades around 80k–100k miles	Premature clutch wear
AWD Fluid	Low emphasis in schedule	Pump clogging when ignored	$800–$1,500 repair
Software Updates	Applied during recall visits	Many cars never updated	Persistent drivability issues
Warranty Coverage	4yr/50k miles	Failures often after 90k miles	Owner pays

Ford and Volvo called it lifetime fluid in many cases. That’s optimistic. In the real world, heat cycles, traffic, US driving habits — they chew fluid up.

These transmissions aren’t weak. They’re sensitive. Keep fluid clean. Keep software current. Service the Haldex. Do that, and the TF-80 doesn’t usually lunch itself.

Lawsuits, Complaints & Regulatory History

The only significant transmission-related regulatory action was Recall 12V317000. No major US class action targeting the TF-80 in the S80 platform specifically.

NHTSA complaints tend to cluster around harsh shifting, stalling tied to recall vehicles, and AWD disengagement warnings.

No formal defect investigation concluded that this transmission design is structurally flawed.

Bottom Line

This drivetrain is not a ticking time bomb. It’s not garbage. It’s not bulletproof either.

Maintain it and it rewards you. Ignore it and it gets expensive.

I’ve seen properly serviced units cross 200,000 miles (321,000 km) without ever being opened. I’ve also seen neglected ones toast a torque converter before 120,000.

The difference isn’t magic. It’s maintenance.
