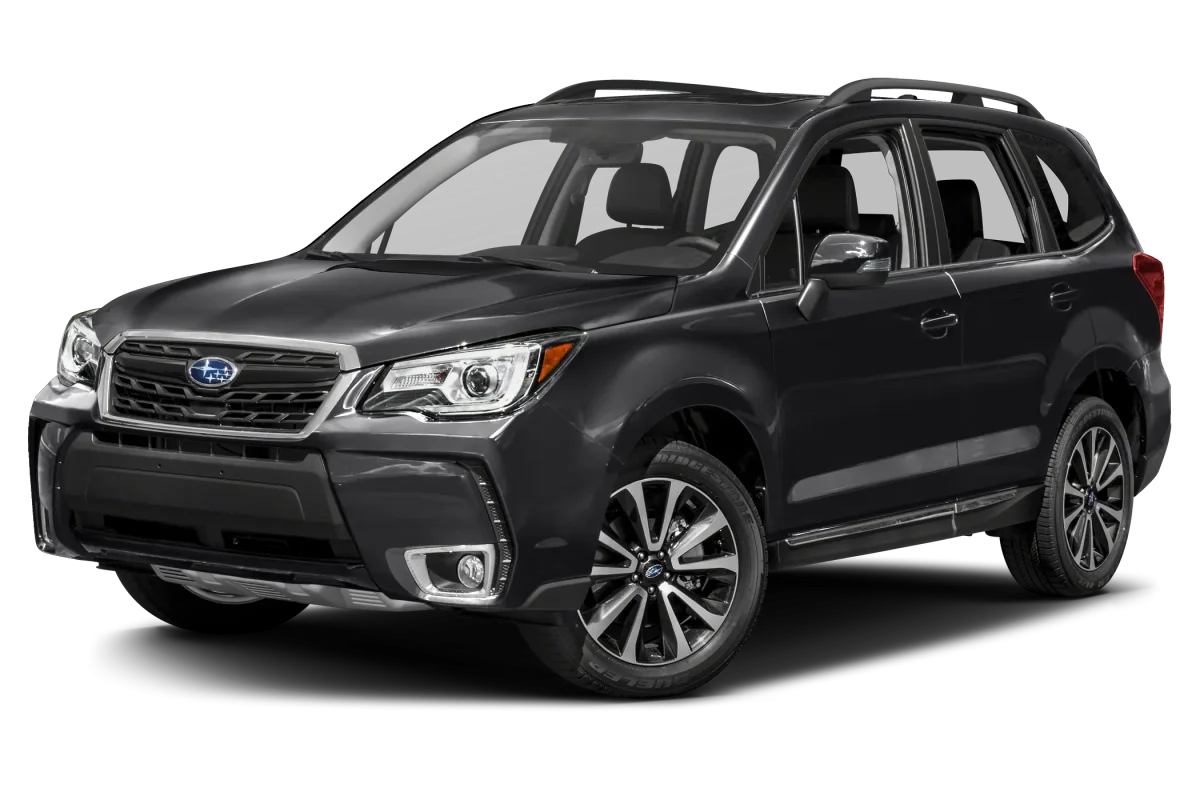

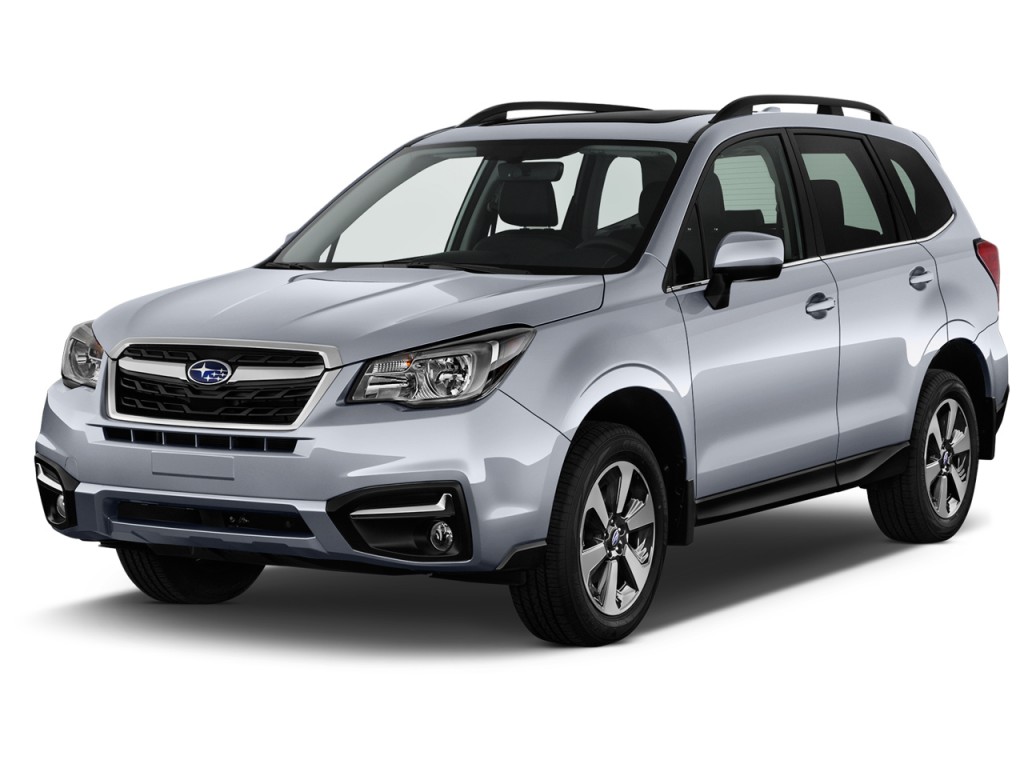

Is the Subaru Forester gen 4 2014–2018 CVT Transmission a Reliability Risk?
Overview
Subaru went all-in on CVTs with this generation. No fallback. No traditional automatic hiding in lower trims. Just Lineartronic across the board, tied into a full-time AWD setup with a transfer clutch living inside the transmission itself.
On paper, it’s clean. Compact. Efficient. Everything integrated into one unit. In the shop? Different story.
I’ve seen a lot of these come through. The actual internal hardware — belt, pulleys — usually holds up longer than people expect. But the control side? The hydraulics? That’s where things start getting messy.
You don’t usually get a dramatic failure. No loud bang. No gears on the floor. It’s slower than that. Pressure gets weird. Fluid gets cooked. Electronics start making bad decisions. And then the warnings begin.
Which Transmissions It Uses
| Transmission Code | Type | Drive Layout | Engine Pairing | Years Used | Notes |
|---|---|---|---|---|---|
| TR580 | CVT | AWD (Active Torque Split) | 2.5L FB25 | 2014–2018 | Main unit for non-turbo models |
| TR690 | CVT (High Torque) | AWD (Active Torque Split) | 2.0L FA20 Turbo | 2014–2018 | Stronger version for turbo models |
That’s it. No alternatives. No hidden options. If it’s automatic, it’s one of these two.
Both are transaxles. Front diff is inside. Transfer clutch is inside. One big, complicated, fluid-dependent box doing everything.
Main Failure Patterns
Valve Body / Control Valve Problems
This is the big one. If you work on Subarus, you already know it.
The valve body — Subaru calls it the control valve assembly — starts acting up. Pressure readings get weird. Solenoids don’t respond cleanly. The computer gets confused. Then you get codes like P0841.
Sometimes it drives fine. Sometimes it doesn’t. That’s what throws people off.
- Symptom: AT Temp light, stored pressure codes
- Failure mode: Bad pressure control inside valve body
- Root cause: Internal wear or contamination
- Trigger: Fluid condition, heat cycles
- Mileage: Service Bay Benchmark 60,000–120,000 miles (96,000–193,000 km)
- Frequency: Medium
I’ve seen cars where the dealership wanted to replace the whole tranny. Turned out it just needed a valve body. Big difference in cost.
False Pressure Codes and Weird Diagnostics
This one gets people chasing ghosts.
Subaru actually put out bulletins about this. The system can misread pressure if the fluid is aerated or the logic isn’t updated. So you get warning lights, maybe limp mode, but no hard mechanical failure.
You clear the code. It comes back. Or it doesn’t. Depends on the day.
- Symptom: Warning lights with inconsistent behavior
- Failure mode: Incorrect pressure interpretation
- Root cause: Aerated fluid or calibration issues
- Trigger: Driving conditions, fluid state
- Mileage: Field Observation 40,000–100,000 miles (64,000–160,000 km)
- Frequency: Medium
Fluid Leaks — Seals, Covers, the Usual Suspects
CVTs hate fluid loss. And yet… these leak.
Input shaft seals. Oil pump chain cover. You’ll see seepage first, then actual dripping if it’s ignored. Subaru updated parts and procedures, which tells you everything you need to know.
It’s not dramatic. Just enough to slowly mess with pressure stability.
- Symptom: Fluid under transmission
- Failure mode: External leak
- Root cause: Seal wear, sealing issues
- Trigger: Heat cycles, age
- Mileage: Service Bay Benchmark 60,000–120,000 miles (96,000–193,000 km)
- Frequency: Medium
Transfer Clutch Wear (AWD System)
This part gets ignored a lot because it’s buried inside the transmission.
It’s a multi-plate clutch. It wears. Simple as that.
When it starts going, you get weird AWD behavior. Binding in turns. Uneven power delivery. Nothing catastrophic, just annoying and expensive.
- Symptom: Binding or uneven AWD engagement
- Failure mode: Clutch wear
- Root cause: Friction material degradation
- Trigger: Heat, fluid condition
- Mileage: Service Bay Benchmark 120,000+ miles (193,000+ km)
- Frequency: Low-Medium
Axle and Extension Housing Seal Leaks
These show up all the time during inspections. Not always urgent. Still not something you ignore.
- Symptom: Fluid around axle outputs or rear seal
- Failure mode: Seal degradation
- Root cause: Age, wear
- Trigger: Mileage and environment
- Mileage: Service Bay Benchmark 80,000+ miles (129,000+ km)
- Frequency: Medium
Typical Repair Costs
| Repair Type | Typical Cost (USD) | Basis |
|---|---|---|
| Valve body replacement | $1,200–$2,000 | Service Bay Benchmark |
| TCM reprogramming | $150–$400 | Service Bay Benchmark |
| CVT fluid service | $250–$450 | Service Bay Benchmark |
| Seal repair | $800–$1,500 | Service Bay Benchmark |
| Transfer clutch repair | $1,500–$3,000 | Service Bay Benchmark |
| Full CVT replacement | $5,500–$8,500 | Service Bay Benchmark |
That last number hurts. I’ve seen people scrap perfectly good cars because of it.
Best and Worst Years
| Model Year | Risk Level | Notes |
|---|---|---|
| 2014 | Medium | Early calibration, more software-related issues |
| 2015 | Medium | Included in CVT warranty extensions |
| 2016 | Medium | Gradual improvements, same core hardware |
| 2017 | Medium-Low | Refined parts and updates |
| 2018 | Low-Medium | Updated programming reduces false codes |
Warning Signs & Early Detection
- AT Temp light — even once
- Stored transmission codes
- Delayed engagement
- Weird acceleration behavior
- Fluid leaks under the car
You don’t ignore these. This isn’t an old-school automatic that shrugs things off. This system reacts fast — and expensively.
A proper inspection means scanning the system, checking fluid, and actually driving it. Not just around the block. Tight turns. Stop-and-go. Load it up a bit.
When to Walk Away
- P0841 present and no repair history
- Visible leaks with no documentation
- No service records at all
- Multiple warning signs at once
- Out of warranty and already acting up
If it feels off and the seller says “it’s normal,” it’s not.
Ownership Reality
| Category | OEM Guidance | Real-World Outcome | Cost Consequence |
|---|---|---|---|
| CVT fluid | No fixed interval | Breaks down with use | Pressure issues, valve body wear |
| Valve body | Not a service item | Regular replacement point | $1,200–$2,000 |
| Transmission lifespan | Covered under warranty period | Failures inside extended coverage window | $5,500+ outside warranty |
| AWD clutch | No maintenance listed | Wear over time | $1,500–$3,000 |
Subaru doesn’t give you a fluid interval. That’s the reality. In the shop, we treat that as a suggestion — not a rule.
Cars that get fluid service live longer. Cars that don’t… don’t.
Lawsuits, Complaints & Regulatory History
Subaru extended the CVT warranty on these. That doesn’t happen for no reason.
Coverage goes out to 10 years or 100,000 miles (160,000 km) depending on the program. It includes major internal components and related parts like the valve body and transfer clutch.
NHTSA complaints line up around the same themes:
- Warning lights
- Loss of power
- Erratic transmission behavior
No direct safety recall tied to the CVT hardware itself in this generation. Still, the warranty extensions tell the real story — enough failures to force action, just not labeled as a safety defect.
Always check the VIN. Dealer, NHTSA database, service records. Don’t assume anything.
Bottom Line
This drivetrain isn’t junk. But it’s sensitive. That’s the word.
Keep the fluid clean. Catch problems early. Don’t ignore warning lights. Do that, and it’ll treat you fairly.
Ignore it? It turns into a very expensive lesson.
