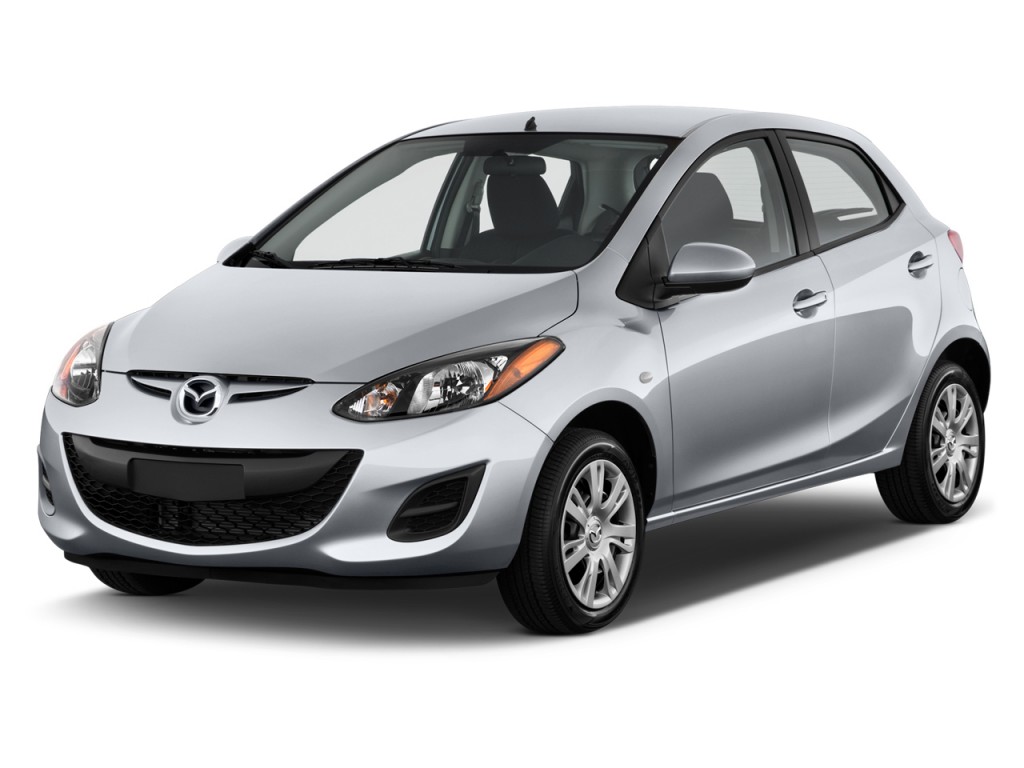

Mazda 2 gen 1 2011–2014 Transmission: Common Issues and Expert Verdict
Overview
The 2011–2014 Mazda 2 is simple. Almost stubbornly simple.
Front-wheel drive. Small 1.5L MZR four-cylinder. A compact transaxle bolted to it. No AWD nonsense. No transfer case hiding under the car. No PTU cooking itself. No dual-clutch drama. No CVT belt slipping into oblivion. Just a basic front differential built into the transmission case and two axle shafts going out to the wheels.
I’ve had a lot of these on lifts over the years. They don’t roll in with grenaded trannies every week. They roll in for maintenance, neglected fluid, worn clutches, little leaks. Normal stuff. That tells you something.
Let’s get the regulatory question out of the way. There were no NHTSA recalls in the U.S. for the transmission, differential, driveshafts, or axle assemblies on the 2011–2014 Mazda 2. None. You can run the VIN through the NHTSA database and confirm it yourself. Other recalls existed for unrelated systems, but the drivetrain itself was not flagged as a safety defect.
So we’re not dealing with a ticking time bomb design flaw. We’re dealing with wear, service quality, and how the car was treated.
Which Transmissions It Uses
This generation used exactly two transmissions in the U.S. market. No hidden variations. No mid-cycle swap.
FN4A-EL
- Model code: FN4A-EL
- Type: 4-speed automatic
- Drive layout: FWD
- Engine pairing: 1.5L MZR DOHC inline-4
- Production years: 2011–2014
- No verified alternative automatic transmissions used
This is an old-school hydraulic 4-speed automatic. Torque converter. Clutch packs. Valve body. Solenoids. Nothing exotic.
G5M-R
- Model code: G5M-R
- Type: 5-speed manual
- Drive layout: FWD
- Engine pairing: 1.5L MZR DOHC inline-4
- Production years: 2011–2014
- No verified alternative manual transmissions used
The differential is integrated into the case on both units. No separate rear diff. No driveshaft running down the tunnel. Just a compact transaxle package.
Main Failure Patterns
Wrong Fluid in the FN4A-EL
This is where most automatic problems start. Not bad engineering. Bad servicing.
Mazda specified ATF M-V (Type M5) for the FN4A-EL. They even issued technical service bulletins clarifying that Mercon V and Mercon LV are not substitutes. Shops still pour the wrong stuff in. I’ve seen it. More than once.
What happens next?
- Harsh 1–2 shift
- Delayed engagement into Drive
- Shift flare under moderate throttle
- Torque converter clutch shudder at light load
The friction modifiers in the wrong fluid change clutch apply behavior. The valve body tries to compensate. It can’t. Over time, the clutch packs glaze. Then you get shavings in the pan. Then the customer says, “It was fine before the service.” Yeah. It probably was.
If you catch it early, a few drain-and-fills with correct ATF M-V can clean things up. If you wait until it’s slipping under load, that band-aid fix won’t save it.
Valve Body Wear on High-Mileage Automatics
These 4-speeds will run a long time if they’re fed clean fluid. I’ve seen them go 180,000 miles (290,000 km) without internal hard-part failure.
Past 130,000–170,000 miles (209,000–274,000 km), valve body wear becomes more common. That’s just aging hydraulics. Bores wear. Pressure control isn’t as crisp. You get:
- Harsh engagement when hot
- Inconsistent shift timing
- Occasional slip without stored gear ratio codes
This isn’t a dramatic explosion. It’s a slow decline. Customers describe it as “weird shifting.” They’re not wrong.
Manual Clutch Wear – G5M-R
The 5-speed itself? Solid.
The 1.5L engine doesn’t make enough torque to hurt it unless you’re doing something ridiculous. I’ve rarely seen one with broken gears or a grenaded case in stock form.
Clutches wear out. That’s life.
Industry estimate puts clutch lifespan around 90,000 to 150,000 miles (145,000–240,000 km), depending on driving style. City drivers burn them up faster. Highway commuters barely touch them.
Common findings in the shop:
- Worn friction disc
- Noisy throwout bearing
- Pressure plate fatigue
Occasionally you’ll get someone who rides the clutch and it’s done at 60,000 miles. That’s not the transmission’s fault.
Axle Shaft Seal Seepage
High-mileage cars start to sweat. These are no different.
The axle seals at the differential outputs can seep once you’re past 120,000 miles (193,000 km). The rubber hardens. Heat cycles take their toll. It’s not dramatic. Usually a little red mist around the seal lip.
Ignore it long enough and fluid drops. Then bearings start complaining. I’ve pulled pans with metallic fuzz because someone thought a drip was harmless.
Typical Repair Costs
Let’s talk money. Because that’s what people care about when the tranny starts acting up.
| Repair Type | Parts (USD) | Labor (USD) | Total (USD) | Mileage Context |
|---|---|---|---|---|
| Automatic fluid service (drain & fill) | $40–$100 | $100–$180 | $140–$280 | 30,000–60,000 miles |
| Valve body replacement (FN4A-EL) | $450–$900 | $600–$1,000 | $1,050–$1,900 | 130,000+ miles |
| Remanufactured automatic transmission installation | $2,200–$3,200 | $1,200–$2,000 | $3,400–$5,200 | 150,000+ miles |
| Clutch replacement (G5M-R) | $450–$700 | $800–$1,200 | $1,250–$1,900 | 90,000–150,000 miles |
| Axle seal replacement | $15–$40 | $250–$400 | $265–$440 | 120,000+ miles |
Those numbers reflect typical independent shop rates in 2024–2025. Dealers will be higher. Big cities, higher again.
A full rebuild north of $4,000 USD makes zero financial sense on a rough high-mileage Mazda 2. At that point you’re throwing good money at a cheap car.
Best and Worst Years
People always ask, “Which year should I avoid?”
With this platform? There isn’t a cursed year.
| Model Year | Transmission Options | Transmission Recalls | Drivetrain Complaint Pattern | Overall Transmission Risk |
|---|---|---|---|---|
| 2011 | FN4A-EL, G5M-R | None | Scattered service-related issues | Low |
| 2012 | FN4A-EL, G5M-R | None | No clustering | Low |
| 2013 | FN4A-EL, G5M-R | None | No clustering | Low |
| 2014 | FN4A-EL, G5M-R | None | No clustering | Low |
I’ve not seen a build range that screams “avoid this one.” Condition matters more than model year.
Warning Signs & Early Detection
You don’t wait for it to grenade. You watch for clues.
- Delayed engagement into Drive on cold start
- Harsh 1–2 shift once warm
- Shudder at 30–45 mph (48–72 km/h) under light throttle
- Burnt smell from the transmission fluid
- Clutch engagement point at the very top of pedal travel
- Red fluid around axle seals
Normal operating temp for a conventional automatic like this sits around 170°F–200°F (77°C–93°C). Push it above 220°F (104°C) regularly and clutch material ages fast. That’s not theory. That’s years of pulling apart heat-cooked units.
Scan it. Check for gear ratio codes. Look at fluid color. If the pan is full of shavings, that’s not a good day.
When to Walk Away
Some cars aren’t worth saving.
- Burnt fluid plus slipping under load
- Multiple stored gear ratio DTCs
- Metal debris in the pan
- Severe flare between gears after proper fluid service
- Manual gearbox lunching gears in more than one ratio
If it’s slipping in several gears and the fluid looks like black coffee, you’re staring at a rebuild or replacement. On a cheap subcompact, that math gets ugly fast.
Ownership Reality
Here’s where real life clashes with the book.
| OEM Guidance | Real-World Outcome | Cost Consequence |
|---|---|---|
| Extended or undefined fluid interval under normal driving | Shift degradation after 80,000–100,000 miles | $1,000+ USD valve body work |
| Fluid must meet ATF M-V specification | Wrong fluid causes messy shift behavior | $3,000+ USD rebuild risk |
| Clutch life varies with driving style | City driving eats friction material faster | $1,250–$1,900 USD clutch job |
I tell owners this all the time: change the automatic fluid every 30,000–40,000 miles (48,000–64,000 km). Drain and fill. Don’t let a quick-lube place flush it with mystery fluid. That’s where problems start.
The manual gearbox is straightforward. Keep gear oil clean. Don’t ride the clutch. Don’t ignore noise.
Lawsuits, Complaints & Regulatory History
No class action lawsuits targeting the transmission on this generation in the U.S.
NHTSA complaint data shows scattered powertrain entries. No clustering. No Preliminary Evaluation. No Engineering Analysis tied to the transmission or driveline.
No warranty extension. No customer satisfaction program. No regulatory red flags on the tranny itself.
Bottom Line
This drivetrain isn’t flashy. It isn’t over-engineered. It’s basic. And that’s a good thing.
The FN4A-EL automatic can live a long life if it gets the right fluid and regular service. Feed it the wrong stuff and it turns into a headache. The G5M-R manual is tough as long as the driver isn’t abusing it.
I’ve seen dozens of these cross 180,000 miles without catastrophic failure. I’ve also seen a few destroyed by neglect or cheap servicing.
It’s not a ticking time bomb. It’s not bulletproof either. Treat it right and it stays cheap. Ignore it and you’ll be pricing out a reman unit wondering how a small car turned into a big bill.
