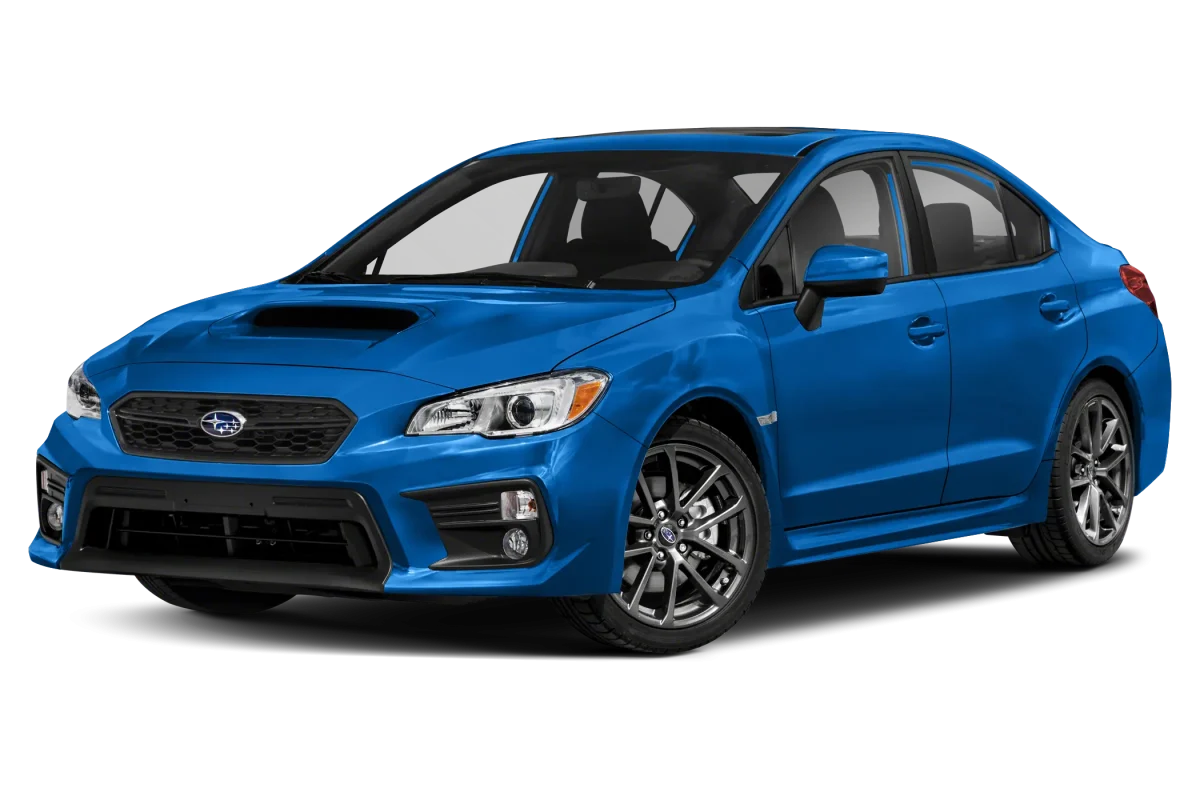

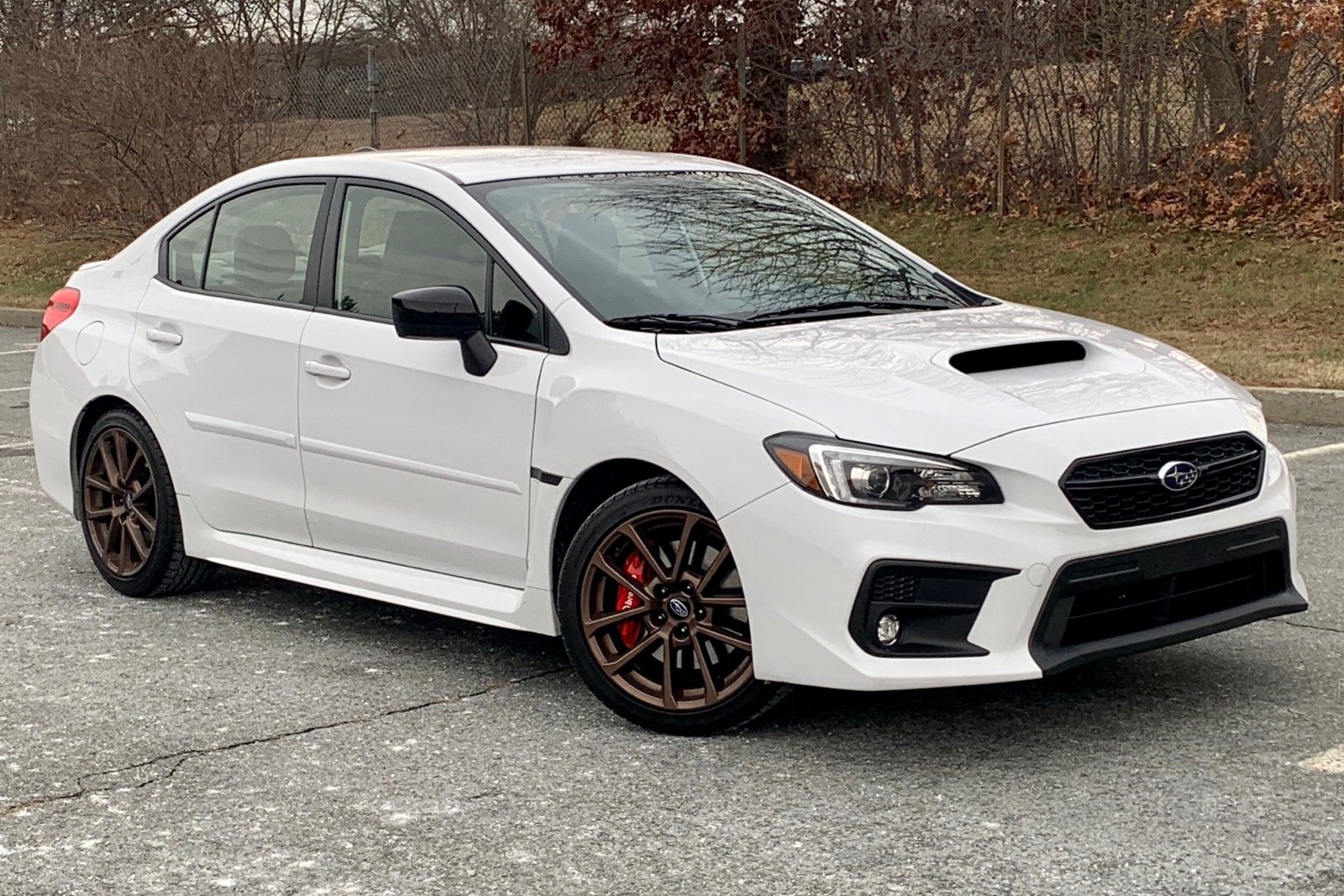

Subaru WRX gen 3 2015–2021 CVT Transmission Reliability Under Real Ownership
Overview
This WRX CVT setup? It’s a weird one.
You’ve got a turbocharged FA20F pushing into a TR690 Lineartronic CVT, then that power gets split through an AWD system using a transfer clutch bolted to the back of the tranny. On paper, it’s clever. In the bay… it’s sensitive. Real sensitive.
I’ve seen plenty of these come through. Some go 100,000 miles (160,000 km) without drama. Others start acting up before 60,000 miles (96,000 km). Same hardware. Different lives.
What matters here isn’t just the transmission—it’s the whole driveline system working together. Fluid condition, tire matching, heat, driving style. Miss one of those and things start going sideways fast.
Which Transmissions It Uses
| Transmission Code | Type | Gears | Drive Layout | Engine Pairing | Years | Notes |
|---|---|---|---|---|---|---|
| TR690 Lineartronic | Chain-driven CVT | Variable (step logic programmed) | AWD | FA20F 2.0L Turbo | 2015–2021 | High-torque CVT with integrated front differential and electronically controlled multi-plate transfer clutch |
That’s it. One transmission. No alternatives. If you bought a CVT WRX, this is what you’re married to.
Main Failure Patterns
CVT Fluid Seepage — The Slow Leak Nobody Notices
Subaru put out TSB 16-103-16R for fluid seepage. Oil pump chain cover, input shaft seal… those are your usual suspects.
It starts small. A little dampness. Nothing dripping. Easy to ignore.
Then it gets worse.
In my experience, once these start leaking, they don’t magically stop. Fluid level drops, air gets pulled in, pressure starts getting weird. That’s when the tranny starts acting confused—ratio changes feel off, engagement gets lazy, sometimes you’ll even see warning lights.
Valve Body Problems — P0841 and Friends
TSB 16-119-19. That’s Subaru admitting the control valve assembly had issues.
What you’ll see:
- AT temp light popping on when it shouldn’t
- Random limp mode
- Weird ratio behavior
This isn’t always a hard mechanical failure. It’s messy hydraulic control. Fluid aeration, internal wear, pressure readings that don’t line up with reality.
I’ve seen cars come in where nothing inside is “broken,” but the control system is so out of whack it might as well be.
AWD Transfer Clutch Shudder — Feels Like the Car Is Fighting Itself
TSB 16-120-19 covers this one.
Customer complaint is always the same:
- “It jerks when I turn”
- “Feels like something is binding”
They’re right. It is binding.
The transfer clutch is trying to balance front and rear torque, but something’s off. Most of the time? Tires.
Subaru says max 1/4 inch (~6 mm) circumference difference. Sounds picky. It is. Ignore it and the AWD system starts fighting itself, constantly slipping and grabbing.
Do that long enough and you glaze the clutch pack. Then you’re not fixing it with a simple relearn or “figure-eight” break-in procedure anymore.
Transfer Clutch Pressure Control — When the System Loses Its Mind
The clutch pressure is controlled by a solenoid inside the valve body. That’s straight from Subaru service info.
When it goes wrong, it doesn’t fail clean.
You get:
- Too much pressure → binding, dragging, awkward turns
- Too little → weak AWD engagement, delayed response
Service Bay Benchmark — I’ve seen these misdiagnosed as rear diff failures more times than I can count. It’s not the diff. It’s the control side.
Fluid Aeration — The Hidden Problem
This one doesn’t get enough attention.
TSB 16-119-19 even mentions aerated fluid messing with pressure readings. That’s a big deal.
Air in the fluid means unstable pressure. Unstable pressure means the whole system starts guessing instead of operating.
And once that starts? You get all kinds of weird behavior that doesn’t point cleanly to one part.
Typical Repair Costs
Let’s talk money. Because this is where people get blindsided.
| Repair Type | Typical Cost (USD) | Notes |
|---|---|---|
| CVT reseal (input shaft / chain cover) | $800 – $1,800 | Labor-heavy, often requires pulling the tranny |
| Control valve body replacement | $1,200 – $2,200 | Common fix for pressure-related faults |
| Transfer clutch repair | $1,500 – $3,000 | Gets expensive if internal wear is involved |
| Prop shaft replacement | $400 – $900 | Service Bay Benchmark, usually replaced as a unit |
| Full CVT replacement | $6,000 – $9,000 | Industry Estimate, rebuild options are limited |
And yeah… when these grenades, most shops aren’t rebuilding them. They’re swapping the whole unit.
Best and Worst Years
| Year Range | Assessment | Notes |
|---|---|---|
| 2015–2016 | Higher Risk | More TSB-related issues show up here |
| 2017 | Moderate Risk | Updated valve body components introduced |
| 2018–2019 | Middle Ground | Same hardware, fewer complaints overall |
| 2020–2021 | Lower Risk | Later production, fewer repeat issues in the field |
Warning Signs & Early Detection
These don’t just explode overnight. They give you hints.
- AT temp light that shouldn’t be on
- P0841 stored or pending
- Shudder when turning into a parking spot
- Fluid residue around the bellhousing
- AWD feels delayed or confused
In my experience, you need the right scan tool. Not a cheap code reader. You want live CVT pressure data, clutch duty cycles, real numbers—not guesses.
When to Walk Away
Some cars aren’t worth saving. Simple as that.
- Pressure codes that keep coming back
- Binding you can feel immediately on a test drive
- Visible leaks with no repair history
- Mismatched tires or uneven wear
- No proof of any CVT service
If it checks multiple boxes here, you’re looking at a ticking time bomb.
Ownership Reality
This is where the brochure and real life split hard.
| Category | OEM Guidance | Real-World Outcome | Cost Impact |
|---|---|---|---|
| CVT Fluid | No strict interval in all conditions | Service Bay Benchmark: breaks down under load | Ignored = expensive internal wear |
| Tire Matching | Strict requirement | Field Observation: often ignored | Destroys transfer clutch over time |
| Heat Load | No special instructions | Turbo + AWD adds stress | Accelerates fluid and valve wear |
| Warranty | 10yr / 100k miles (160,000 km) | Field Observation: failures cluster near limits | Owner pays after coverage ends |
| Diagnostics | OEM procedures required | Service Bay Benchmark: generic tools miss data | Misdiagnosis = wasted money |
Subaru calling this “lifetime fluid” in some cases? Yeah… that doesn’t line up with what we actually see.
Lawsuits, Complaints & Regulatory History
There is a CVT warranty extension tied to TSB 16-115-18. Covers certain WRX models up to 10 years or 100,000 miles (160,000 km).
That doesn’t happen by accident. That’s Subaru acknowledging there were issues.
No confirmed WRX-only class action tied strictly to this transmission. But if you look at broader Subaru CVT complaints in NHTSA data, the themes repeat:
- Shudder
- Warning lights
- Erratic behavior
WRX numbers are lower, mostly because fewer people bought the CVT version. Same hardware family though. Same patterns.
Always check VIN eligibility. Dealer system or official lookup. Don’t assume coverage.
Bottom Line
This drivetrain isn’t junk. But it’s not forgiving either.
You keep the fluid clean, match the tires, don’t overheat it—it can go the distance.
You ignore those things?
It turns into a very expensive lesson.
Service Bay Benchmark — most of the failures I see aren’t sudden. They build up. Small issues stacking until the whole system starts falling apart.
And once it gets there, you’re not doing cheap fixes anymore. You’re talking real money.
