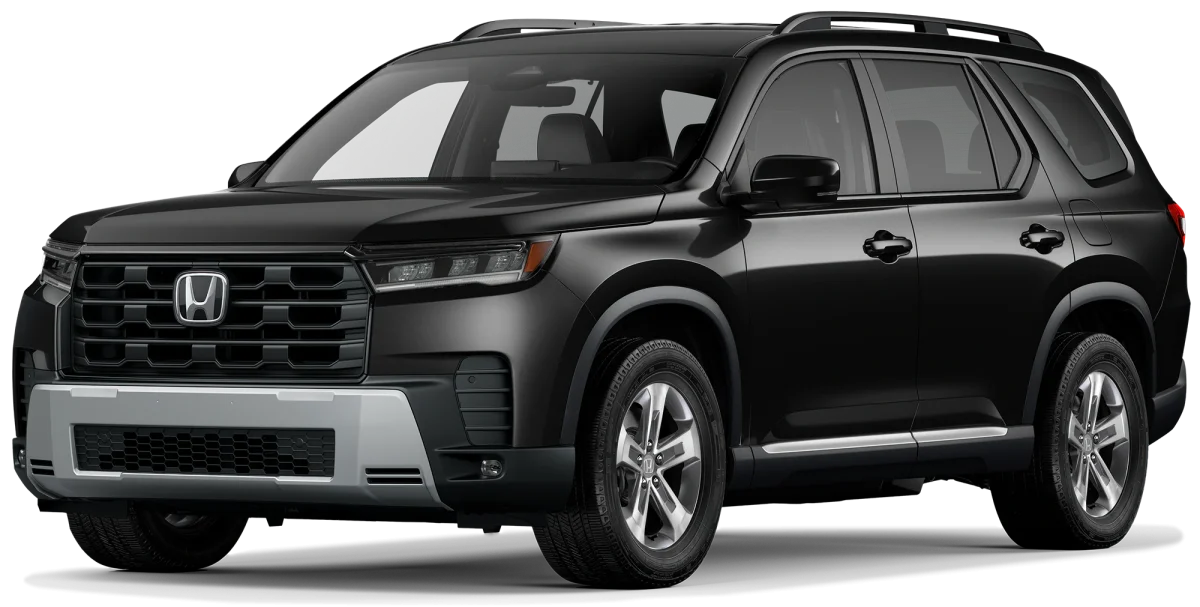

Honda Pilot gen 4 2023–present Transmission Reliability Under Real Ownership

Overview

One transmission. That’s it.

The 2023–present Honda Pilot runs a single 10-speed automatic across the board. No CVT experiments. No dual-clutch nonsense. No manual option hiding in a base trim. Every single one uses Honda’s in-house 10-speed bolted to the 3.5L V6 making 262 lb-ft (355 Nm). Same basic powertrain setup whether you bought a base FWD grocery hauler or a loaded AWD family tank.

From a drivetrain perspective, this generation is simple on paper:

• Honda 10-speed planetary automatic
• Front power take-off unit on AWD models
• i-VTM4 twin-clutch rear differential
• Two-piece prop shaft on AWD
• Standard front and rear half shafts

No federal safety recall targeting the transmission. None for the rear differential either. I check NHTSA data before I say that. There are complaints — shift hesitation, surge, AWD warning lights — but no official recall campaign calling this tranny defective.

So we’re not dealing with a ticking time bomb. We’re dealing with behavior. Calibration. Heat. And maintenance habits.

Which Transmissions It Uses

Honda H10 (10AT)

• Model designation: Honda 10-speed automatic (H10 internal designation)
• Gear count: 10 forward gears
• Drive layout: FWD standard, i-VTM4 AWD optional
• Engine pairing: 3.5L J35Y8 V6 (262 lb-ft / 355 Nm)
• Production years: 2023–present
• No verified alternative transmissions used

This is a torque-converter planetary automatic. Traditional architecture. No dual clutches hiding inside. It uses aggressive ratio spacing to chase fuel economy numbers while still giving decent pull when you need it.

AWD models add Honda’s i-VTM4 system. That’s a twin wet-clutch rear differential that can vector torque left to right. Over-engineered? Maybe a little. Effective? Yes. Until people abuse it.

Tow rating caps at 5,000 lb (2,268 kg) in the right configuration. That’s real-world SUV territory. And towing changes everything for transmission fluid life.

Main Failure Patterns

Low-Speed Hesitation

This is the one people complain about first.

You roll into the throttle from a stop. The vehicle pauses. Feels like it’s thinking. Then it moves. Owners call it slipping. It usually isn’t.

In my experience, this is calibration. The 10-speed is tuned aggressively for fuel economy. Early torque converter clutch modulation, quick short shifts, adaptive learning doing its thing. The transmission control module is trying to be clever. Drivers interpret that as delay.

Scan it. Most of the time clutch fill times are within spec. No excessive slip counts. No shavings in the pan. Just software behavior.

1–2 Shift Flare or Surge

I’ve seen dozens of these where customers swear the tranny is about to grenade. It isn’t.

Light throttle. Early upshift. RPM jumps slightly, then settles. That’s adaptive logic adjusting clutch pressure. After a reset or software update, many calm down.

Is it buttery smooth? No. Is it mechanically failing? Rarely.

Firm Coastdown Downshift

Slowing from about 30 Miles (48 km) to 20 Miles (32 km), you may feel a bump. Almost like someone tapped the rear bumper.

That’s rev-matched downshift logic. The transmission is trying to keep the engine in a ready gear. Feels aggressive. It isn’t lunching gears. It’s just firm.

I haven’t torn one down for internal failure related to this behavior. Not yet.

AWD Overheat Warnings

This is where people get into trouble.

The i-VTM4 rear differential uses dual wet clutches. Spin the wheels in snow long enough and the fluid temp climbs. Past about 248°F (120°C), the system starts protecting itself. Warning light comes on. Torque gets reduced.

Keep doing it. Over and over. You cook the fluid.

Service Bay Benchmark: I’ve drained rear differential fluid at 25,000–30,000 Miles (40,000–48,000 km) on AWD-heavy vehicles and it already smells burnt. Dark. Thin. That’s heat shear.

Ignore it long enough and you’re staring at a $2,600–$3,700 repair bill. Not cheap.

Driveshaft Vibration

Isolated cases. Not epidemic.

Highway speeds — 60 to 75 Miles (97–121 km). Slight vibration. Could be prop shaft imbalance. Could be a center support bearing starting to complain. I’ve also seen axle imbalance mimic the same thing.

No widespread defect pattern. Just mechanical stuff that can happen.

Fluid Breakdown Under Towing

Tow 5,000 lb (2,268 kg) in summer heat and watch transmission temperatures climb past 230°F (110°C). That’s normal physics. Heat kills fluid.

Industry Estimate: Severe towing justifies fluid changes closer to 30,000 Miles (48,000 km). I don’t wait for a Maintenance Minder to give me permission when someone tows regularly.

Typical Repair Costs

Let’s talk money. Because this is where frustration really starts.

Repair Type	Parts (USD)	Labor (USD)	Total (USD)	Context
Transmission fluid service	$100–$180	$150–$250	$250–$430	Routine maintenance
Rear differential fluid service	$50–$100	$120–$200	$170–$300	AWD models
Rear differential replacement	$1,800–$2,500	$800–$1,200	$2,600–$3,700	Out-of-warranty clutch damage
Complete transmission replacement	$4,500–$6,000	$1,500–$2,200	$6,000–$8,200	Rare catastrophic failure
Driveshaft assembly replacement	$600–$1,000	$300–$500	$900–$1,500	Vibration correction

Full transmission rebuilds on this unit? I don’t see many. When they fail hard, shops usually replace the assembly. It’s faster and often cheaper than chasing internal damage.

Rear differential failures sting more emotionally than mechanically. Owners didn’t expect that bill.

Best and Worst Years

Year	Configuration	Complaint Trend	Recall Status	Primary Pattern	Risk Assessment
2023	H10 FWD/AWD	Higher (launch volume)	No driveline recall	Shift behavior complaints	Moderate
2024	H10 FWD/AWD	Stabilizing	No driveline recall	Calibration refinement	Low–Moderate
2025	H10 FWD/AWD	Early lifecycle	No driveline recall	AWD warning reports	Undetermined

Launch-year vehicles always show more complaints. That’s normal. I don’t see escalation across later builds. No smoking gun.

Warning Signs & Early Detection

If you’re shopping used or diagnosing your own, look for this:

• Delay shifting from Park to Drive
• RPM flare under light throttle
• Repeated AWD temperature messages
• Vibration at highway speeds
• Harsh engagement when cold

Scan tool matters. Pull clutch fill times. Look at slip counters. Check rear differential temperature history. If someone’s been abusing AWD in deep snow, it leaves fingerprints in the data.

Fluid inspection tells stories. Burnt smell. Metallic shimmer. Dark fluid way too early. That’s heat and friction material.

When to Walk Away

Some vehicles are fine. Some are beat.

• Recurring AWD warnings after service
• Transmission slipping below 40,000 Miles (64,000 km)
• Heavy towing with no fluid history
• Multiple rear diff replacements

That’s when I start backing away slowly.

Repeated component swaps at low mileage usually mean hard use. Or someone tried a band-aid fix and it didn’t stick.

Ownership Reality

Here’s where brochure language meets the real world.

OEM Position	Real-World Observation	Cost Impact
Maintenance Minder sets service timing	Heat from towing and AWD use accelerates fluid breakdown	Earlier service protects clutches
AWD system is sealed and automatic	Rear diff fluid cooks under repeated load	$2,600+ if neglected
No rebuild expected during normal use	Software updates improve shift behavior	Dealer programming may be required
Factory fill supports long intervals	Short trips create moisture and thermal cycling	Solenoid longevity improves with maintenance

I don’t call any fluid lifetime. That term is marketing. Heat wins. Always.

Lawsuits, Complaints & Regulatory History

No verified class-action lawsuit targeting the 2023–present Honda Pilot transmission.

NHTSA complaints focus on:

• Shift hesitation
• Surging during upshift
• AWD warning indicators

No formal federal recall or ODI investigation specific to the transmission or rear differential.

This isn’t a CDF drum situation like we’ve seen in other brands. It’s more behavioral than catastrophic.

Bottom Line

The fourth-generation Pilot runs one drivetrain setup. Honda’s 10-speed automatic paired with a 3.5L V6 and optional i-VTM4 AWD.

I don’t see a structural flaw. I see a sensitive system that reacts badly to heat and neglect.

Maintain the fluids. Don’t abuse the AWD in deep snow for ten minutes straight. Verify software updates. Do that and the transmission isn’t a ticking time bomb.

Ignore maintenance, tow heavy in summer, spin all four wheels until smoke comes out — then yes, it gets expensive fast.

This platform isn’t garbage. It just demands respect.
