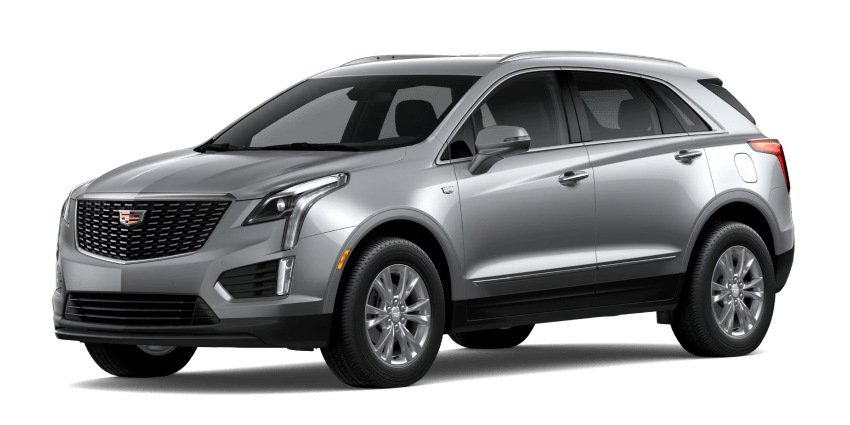

How the Cadillac XT5 gen 1 2017–present Transmission Actually Fails
Overview
The first-generation Cadillac XT5 (2017–present) is one of those vehicles that looks calm on the surface. Clean body lines. Quiet ride. Upscale badge. Underneath? A very modern, very software-dependent drivetrain that can either behave beautifully… or irritate you for 80,000 Miles (128,000 km) straight.
I’ve worked on these since they were new. Seen early ones. High-mileage ones. Lease returns. Auction pieces with stories.
From a transmission standpoint, this platform splits into two eras:
- 2017–2019: Aisin AF50-8 (RPO MRC)
- 2020–present: GM 9T50 (M3G) and 9T60 (M3W)
Before we even talk durability, we need to address the regulatory history. Because 2017 AWD models had real drivetrain exposure.
Service Update 17109 – 2017 AWD (RPO F48)
This wasn’t hype. The rear differential clutch control module could command more torque than it should during low-speed, wide-open throttle events on low-traction surfaces. Snow. Gravel. Wet grass. The rear prop shaft could see a shock load it didn’t like.
Could it grenade instantly? Rare. Could it create damage over time? Yes.
Fix was simple: reprogram the rear differential clutch control module. VIN check at a dealer tells you if it was done. If you’re shopping one of these and that update isn’t in the history, walk.
Service Update 17389 – 2017 PTU
Some early PTUs failed leak testing at the factory. Not wear. Not abuse. Just bad units. They were replaced.
If a 2017 still has its original PTU and no record of that update, you verify it. Always.
Later bulletins like 23-NA-195 and 23-NA-196 addressed rear driveline noise and AWD disengagement ratcheting. Not catastrophic. Annoying. Expensive when out of warranty.
This platform is not junk. But it’s calibration-heavy and fluid-sensitive. Ignore that, and it’ll punish you slowly.
Which Transmissions It Uses
AF50-8 (RPO MRC)
- 8 forward gears
- Transverse automatic
- FWD and AWD configurations
- Paired with 3.6L LGX V6
- Model years: 2017–2019
This is an Aisin-built unit. Not a bad tranny. Actually pretty smooth when maintained. I’ve seen these cross 150,000 Miles (241,000 km) without internal carnage.
Weak? Not really. Sensitive to fluid condition? Yes.
9T50 (RPO M3G)
- 9 forward gears
- Transverse automatic
- FWD and AWD
- Paired with 2.0L LSY turbocharged I4
- 2020–present
9T60 (RPO M3W)
- 9 forward gears
- Transverse automatic
- FWD and AWD
- Paired with 3.6L LGX V6
- 2020–present
The 9T50 and 9T60 are siblings. Same family. Different torque capacity. They are more complex than the AF50-8. More gears. More clutch modulation. More opportunity for shudder if fluid degrades.
No other transmissions were used in this generation.
Main Failure Patterns
2017 AWD Rear Differential Over-Torque
Software problem. Not a hardware disaster.
If the calibration wasn’t updated, the rear diff clutch could apply too aggressively. That shock traveled down the prop shaft. I’ve inspected shafts with visible stress marks after repeated events.
Most were fixed early in life. Today, this is mainly a used-car verification issue.
PTU Heat and Fluid Degradation
The PTU lives a hard life. Tight packaging. Close to exhaust heat. Minimal fluid volume.
Under load, I’ve measured PTU temps exceeding 220°F (104°C). On long highway climbs, they climb higher. Fluid cooks. Shear stability drops. Protection fades.
GM doesn’t list a routine PTU service interval. In my shop, we treat it like a ticking time bomb if the fluid is original past 80,000 Miles (128,000 km).
When these fail, they don’t always explode. They whine first. Then leak. Then you’re writing a $2,000 check.
9T50 / 9T60 Torque Converter Clutch Shudder
This is the big one.
Light throttle. 25–45 Miles (40–72 km). Feels like you’re driving across rumble strips. Customers describe it as a vibration that comes and goes.
What’s happening? The torque converter clutch is trying to slip in a controlled way. Fluid loses shear stability. The clutch lining starts glazing. The apply becomes unstable. The modulation oscillates. You feel it through the seat.
Bulletin 23-NA-072 addresses this pattern.
Early stage? Fluid exchange can help. Sometimes it’s just a band-aid fix. Advanced cases need a converter.
I’ve seen units continue shuddering after fluid service because the clutch surface was already damaged. Once that friction material is compromised, fresh fluid doesn’t undo it.
Rear Torque Tube Bearing Noise (23-NA-195)
2021–2023 builds.
Humming between 20–70 Miles (32–112 km). Steady cruise. No vibration. Just a low growl from the rear.
The issue lives inside the rear driveline torque tube assembly. Bearing damage. Not user abuse.
It doesn’t strand you. It drives you crazy.
AWD Disengagement Ratcheting (23-NA-196)
Some 2022–2023 builds developed a ratcheting sound when AWD disengaged. The inner differential carrier output shaft could contact the torque tube.
That’s a clearance issue. Not catastrophic. But it shouldn’t be happening on a premium crossover.
Typical Repair Costs
Let’s talk money. Because that’s what hurts.
| Repair Type | Parts (USD) | Labor (USD) | Total (USD) | Context |
|---|---|---|---|---|
| 9T50/9T60 Fluid Exchange | $120–$220 | $180–$300 | $300–$520 | Service Bay Benchmark |
| Torque Converter Replacement | $700–$1,100 | $1,200–$2,000 | $1,900–$3,100 | Common at 60k–110k Miles |
| Complete 9T50/9T60 Replacement | $3,800–$5,500 | $1,500–$2,800 | $5,300–$8,300 | Rare but expensive |
| PTU Replacement | $900–$1,500 | $600–$1,000 | $1,500–$2,500 | AWD models |
| Rear Torque Tube Assembly | $800–$1,400 | $500–$900 | $1,300–$2,300 | TSB-related repair |
These are real-world shop numbers. Not dealership fantasy quotes. Independent shop pricing in 2025.
Full transmission failure is not common. Converter jobs are.
Best and Worst Years
| Model Year | Transmission | Regulatory Exposure | Common Pattern | Risk Level |
|---|---|---|---|---|
| 2017 | AF50-8 | 17109, 17389 | Rear diff calibration, PTU replacement | Medium |
| 2018–2019 | AF50-8 | Minimal | Normal wear | Low–Medium |
| 2020–2021 | 9T50 / 9T60 | No recalls | TCC shudder | Medium |
| 2022–2023 | 9T50 / 9T60 | 23-NA-195, 196 | Rear driveline noise | Low–Medium |
| 2024–present | 9T50 / 9T60 | None significant | Long-term data limited | Projected Low–Medium |
Worst year? Early 2017 AWD builds. Easy answer.
Warning Signs & Early Detection
- Low-speed rumble under light throttle
- Rear humming at steady cruise
- Ratcheting during AWD disengagement
- Harsh engagement from Park to Drive
If you’re serious about buying one, scan the TCM. Check adaptive values. Inspect fluid. Look for metallic shavings in the pan if you have access.
A proper pre-purchase inspection costs a few hundred dollars. A transmission costs several thousand. Do the math.
When to Walk Away
Multiple torque converter replacements on the same VIN. That’s a red flag.
Persistent shudder after fluid service. Another one.
AWD noise that the seller calls “normal.” It’s not.
Missing documentation for 2017 service updates. Hard pass.
Ownership Reality
| OEM Position | Observed Outcome | Cost Impact |
|---|---|---|
| No severe-service transmission interval listed | Fluid shear leads to TCC shudder | $1,900–$3,100 converter repair |
| No PTU fluid schedule | Heat cooks fluid over time | $1,500–$2,500 replacement |
| AWD requires no attention | Torque tube noise issues appear | $1,300–$2,300 repair |
Manufacturers love the phrase “filled for life.” That life might be 100,000 Miles (160,000 km). After that, you’re funding the experiment.
In my experience, servicing the transmission every 30,000–45,000 Miles (48,000–72,000 km) reduces shudder complaints dramatically. It’s not in the manual. It works.
Lawsuits, Complaints & Regulatory History
No verified class action specific to XT5 transmission systems.
NHTSA complaint patterns line up with:
- 2017 AWD driveline calibration concerns
- 2020–2021 low-speed shudder complaints
- 2022–2023 rear driveline noise cases
No active Engineering Analysis targeting the XT5 transmission family at this time.
Bottom Line
This drivetrain isn’t fragile. It isn’t bulletproof either.
Early 2017 AWD models needed software correction. The 9T50 and 9T60 can shudder if fluid maintenance is ignored. PTUs don’t love heat. Rear torque tubes can sing.
Maintain it. Update it. Listen to it.
Do that, and many of these cross 150,000 Miles (241,000 km) without lunching gears or grenading internally.
Ignore it, treat it like a sealed appliance, and you’ll be writing checks you didn’t plan for.
